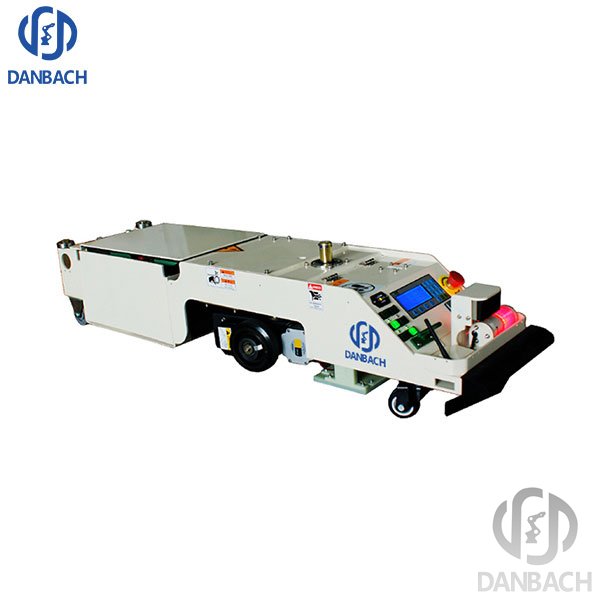

Intelligent logistics warehouse agv
Intelligent logistics warehouse AGV has the conditions to better meet the above characteristics. In addition, the overall benefits of the tobacco industry are better and the equipment is conditionally updated. As a result, watehouse AGV has been rapidly promoted and applied.
The forklift-type warehouse AGV is similar to an electric forklift and has a variety of forward and lateral types of operation. It can perform loading and unloading operations on a variety of occasions from the ground to a higher range.It is very suitable for factory/warehouse to reliable and consistent way of peer-to-peer mobile transportation workpiece/trolley/tray. It is suitable for the material handling with different platform or shelf requirements, especially for the dense storage and handling of entry lanes and multi-storey shelves. Features: Widely used, can be loaded and unloaded in roadways and multi-storey warehouses; the disadvantage is the safety of the reversing process. In China, it is widely used in Xiamen, Nanchang, Wuhu, Shenzhen, Handan materials stores; Honghe original product library.
Intelligent logistics Warehouse agv robot Advatages
1. Easy modification
2. Flexible load handling options
3. Less barriers
4. Easily scalable
5. Easy installation
6. Cleaner and quieter than conventional conveyors
Intelligent Warehouse agv Parameter
|
Item
|
Intelligent logistics warehouse agv
|
|
Product Model
|
CCJPT10V1
|
|
Product Model
|
8692000000000
|
|
Product Size
|
L2200*W802*H710(mm)（Customizable）
|
|
Guidance Type
|
Magnetic Tape Guidance/ Light Electrical Guidance/Laser Guidance(Optional)
|
|
Moving Direction
|
Forward, Backward, Left, Right or Bifurcate
|
|
Wifi
|
WiFi·Wifi or Radio Frequency
|
|
Driving Method
|
Steering Wheel Control
|
|
Driving Power
|
DC24V
|
|
Carrying Capability
|
1000kg（Customizable）
|
|
AGV Type
|
Forklift Type
|
|
Moving Speed
|
35m/min
|
|
Turing Radius
|
1705-2075mm（it is subject to the forklift outline）
|
|
Gradeability
|
5-7 degree
|
|
Guidance Precision
|
±10mm
|
|
Stop Precision
|
±10mm
|
|
Working Method
|
24 Hours
|
|
Charging Method
|
anual Charging or Automatic Charging
|
|
Safety Induction Range
|
≤1m,Adjustable the distance for emergency brake is less than 20mm (adjustable)
|
|
Alarm Type
|
Sound-light Alarm
|
|
Battery
|
Lead Acid Battery or Lithium Battery
|
|
Safety Protection
|
Front Obstacle Testing Sensor + Mechanical Anti-collision Mechanism Double Protection + Emergency Stop Button
|
|
Design Life
|
>10 Years
|
Robot logistics warehouse agv manufacturers description:
The application of AGV in China’s warehouses industry has promoted technological advancement of enterprises, improved working conditions and environment, and improved the level of automated production; effectively liberated labor productivity, Intelligent logistics warehouse AGV reduced labor intensity, reduced staffing, and eliminated outdated production processes and equipment. Optimize the production structure, save manpower, material resources and financial resources.
