The Backpack AGV is powered by a special lithium battery and is equipped with a vehicle inverter. The output AC power supplies the robot arm. The power supply system uses an optimized energy management algorithm to reduce system operation and standby energy consumption and extend battery discharge time. The material storage area is set on the Backpack AGV. According to the dispatch instruction, the robot arm can transfer the material from the equipment table to the AGV, or from the AGV to the equipment table, so as to achieve flexible material supply.

Backpack AGV can realize one point to multipoint handling of materials through magnetic strip guiding. It can automatically transfer to the site selectively through the call system. This car is suitable for production systems with frequent transportation and long material supply cycle.

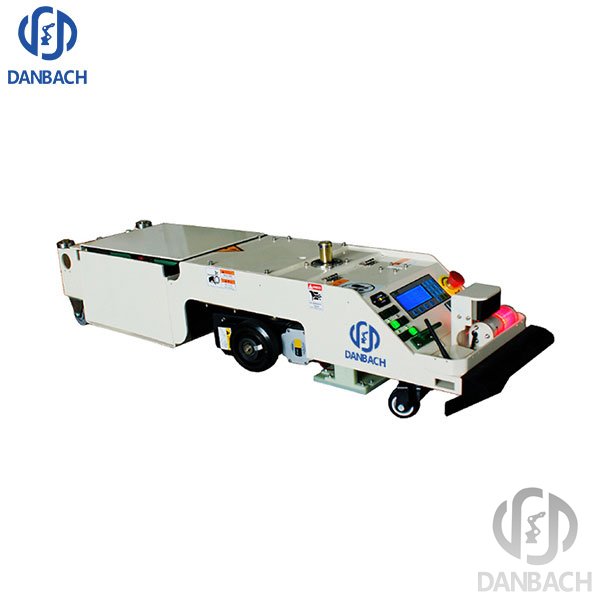

The Photos of Backpack AGV The Features of Backpack AGV
1. It can move in one-way, two-way or omni way. The volume is small and easier to move;
2. When multiple sets of AGV are applied, they can constitute assembly line to substitute streamline, and thus form soft production system;
3. Our backpack AGV can be loaded with pallet, rack or case. Moreover, it can also tow the material conveying cart;
4. Backpack AGV moves in a quick and stable way.

Backpack AGV Parameter

AGV Type	Unidirectional Backpack AGV
External Dimension	L1400*W600*H350 （mm）
Control Method	PLC/AGV Moving Control Chip (Optional)
Guidance Type	Magnetic Tape Guidance
Moving Direction	custom lines, multiple site point stop function, straight moving, left or right turn, bifurcate
Communication Function	Wireless Lane (Optional) or Radio Frequency
Driving Method	Differential Speed Driving
Driving Power	DC24V
Driving Lifting Type	Manual or Electrical Lifting
Carrying Capacity	300kg·1000kg·750kg·1000kg
Moving Speed	0-45m/min (optional)
Turning Radius	minimum 300mm( magnetic tape line pavement radius)
Guidance Precision	±10mm
Working Type	24 Hours
Gradeability	3-5 degree
Stop Precision	±10mm
Charging Type	Manual Charging （optional automatic charging)
Battery	Lead Acid Battery or Lithium Battery
Safety Induction Range	≤1m,Adjustable 20mm the distance for emergency brake is less than 20mm
Charging Method	Manual or Automatic Charging
Alarm Type	Sound-light Alarm
Safety Protection	Front Obstacle Testing Sensor + Mechanical Anti-collision Mechanism
Design Life	>10 Years
